Model |

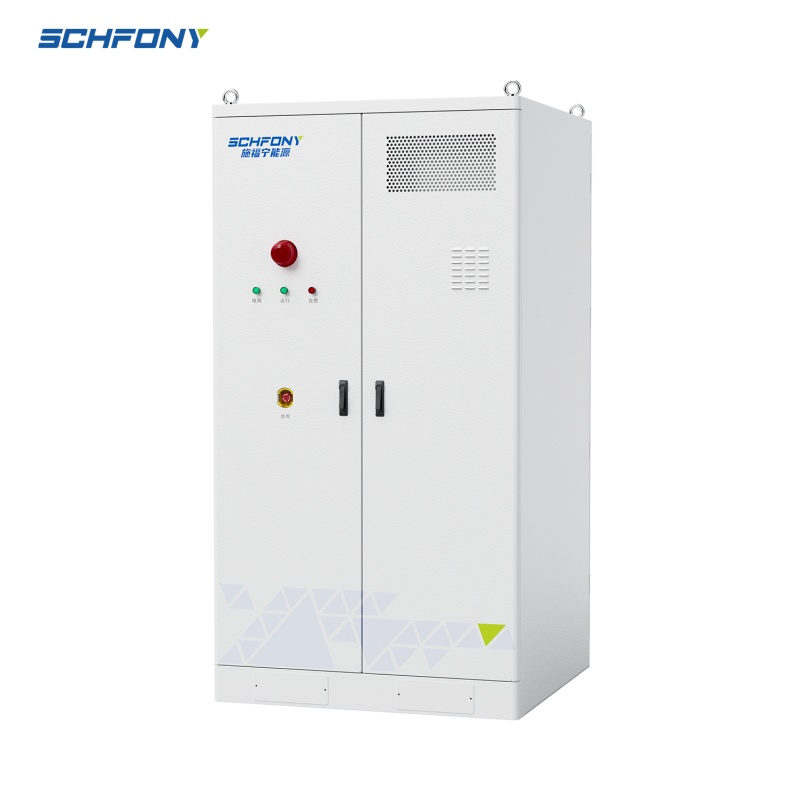

SET-ESS-MAT100/215F |
|
DC side parameters |
|
|
Cell parameters |
LFP-3.2V/280Ah |
|
Battery type |
lithiumiron phosphate |
|
Rated capacity |
215kWh |
|
Grouping method |
1P20S*12 |
|
Rated voltage |
768Vdc |
|
Rated current |
140Adc |
|
Charge/discharge ratio |
0.5C |
|
Cooling method |
Air-cooled |
|
Sensor detection |
Temperature, smoke and flammable gas sensing |
|
Fire protection design |
PACK and two-stage perfluorohexanone in cabinet |
|
AC side parameters |
|
|
Rated power |
100kW |
|
Rated voltage |
230/400,3P+N+PE |
|
Rated frequency |
50Hz |
|
Cooling mode |
Temperature-controlled forced air cooling |
|
Parameters of the whole machine |
|
|
Comprehensive charging and discharging efficiency |
≥86% |
|
Protection grade |
IP54 |
|
Communication |
CAN/RS485/Ethernet/4G |
|
Overall dimension |
1300(W)*1300(D)*2450(H)mm |
|
Weight |
3000kg |
