MODEL：AT100G-YF

AT100G-YF Series Single Phase Din Rail Prepaid Energy Meter

AT100G-YF series single-phase din rail prepaid energy meter has the advantages of good anti-electromagnetic interference, low power consumption, good stability and long service life. It has RS485 communication interface and supports high-speed communication function of RS485. It is ideal for energy management system, energy monitoring system and sub-metering

PREV:No previous article

NEXT:AT100G Series Single Phase Din Rail Energy Meter

Model
Feature
Parameters

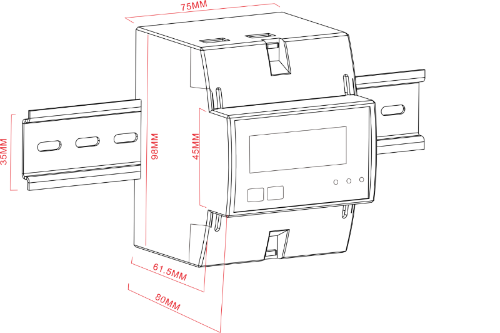

Dimension

●AT100G-YF Single Phase Din Rail Prepaid Energy Meter

Hangzhou Antin Power Technology Co., Ltd.

Hangzhou Antin Power Technology Co., Ltd is located in Hangzhou, China, known as the "Silicon Valley of Paradise". Establishment in 2013.Antin Power is one of the leading AT100G-YF Series Single Phase Din Rail Prepaid Energy Meter Company and AT100G-YF Series Single Phase Din Rail Prepaid Energy Meter Suppliers of electricity meters and energy measurement solutions to help worldwide customers visualize all energy usage and improve productivity and energy efficiency.

Over the years, Antin Power has developed a wide range of products including din rail energy meters, multi-function energy meters, prepaid energy meters, panel meters, etc., which could be widely used in the applications like energy management and monitoring systems, sub-billing systems, electrical SCADA system etc.

0
Founded In
0
Certificate
0year
Quality Promise
0+
Cooperate Client

Company Honor

News

Performance challenges of cabinet dehumidifiers in extremely high humidity envir...
24 Apr, 2024
Humidity, an invisible and intangible environmental factor, has brought a lot of inconvenience to pe...
READ MORE
Digital panel power meter: a measurement tool with high precision, high sensitiv...
18 Apr, 2024
The digital panel power meter is a new type of power measuring instrument. It has the characteristic...
READ MORE
The Powerful Assistant for Remote Monitoring: Network Communication Function of ...
11 Apr, 2024
With the rapid development of information technology, remote monitoring technology has become an ind...
READ MORE
Why use a digital panel power meter to strictly control the ambient temperature?
04 Apr, 2024
Digital panel power meter is a precise electronic measuring instrument, widely used in power system,...
READ MORE
Is the Din rail energy meter suitable for installation on a standard rail?
28 Mar, 2024
The Din rail energy meter is a type of energy meter that is typically smaller in size and suitable f...
READ MORE
The brightness adjustment function provided by the digital panel power meter is ...
21 Mar, 2024
The digital panel power meter not only measures power, but also provides brightness adjustment funct...
READ MORE

Get a quote to learn about our new products

Sales Tel
+86-571-87671599 +86-571-87671539
Technical Support
+86-571-87671596 +86-571-87381800
E-mail
[email protected]
FAX
+86-571-87381800
Address
4th Floor, Building C, Qinglan Science and Technology Park, Xihu District, Hangzhou City, Zhejiang Province, China

What's your name?
What's your email address?*
What's your telephone？
Your company name?
Your message*
SUBMIT

Download
Our Brochure

Click
Back To Top

Working Power
Operating range	AC/DC85~265V
Power consumption	≤5W
AC input
Input voltage Rated	AC 100V、220V、400V
Overload	1.2times continuous,2times( 10s)
Power consumption	<0.4VA/phase
Impedance Input current	≥200kΩ
Primary current	1-9999A
Secondary input	1A or 5A
Short-time overcurrent	20 times Max. current for 0.5 s
Power consumption	<0.2VAPhase
Impedance	≥0.1Ω
Input-output
Switch inputs	Dry contact input, opto-isolated
Switch outputs	Relay output; any power alarm can be set
Comm Port
RS4S5	Modbus RTU
Accuracy
Voltage/Current	0.5%
Frequency	0.2%
Power / Power Factor	1%
Active power	Class0.5S
Reactive power	Class2
Operation Environment
Operating temperature	-25℃~55℃
Storage temperature	-40℃~70℃
Operating humidity	≤90%RH，non-condensing, no corrosive air
Storage humidity	≤95%RH，non-condensing, no corrosive air
Altitude	≤2000m
Electromagnetic compatibility Performance
Electrostatic discharge	Class Ⅳ（GB/T 17626.2 IEC 61000-4-2）
RF EMF radiation immunity	Class Ⅲ（GB/T 17626.3 IEC 61000-4-3）
Fast Transient Burst/Burst	Class Ⅳ(GB/T 17626.4 IEC 61000-4-4）
Surge Test	Class IV(GB/T 17626.5 IEC 61000-4-5)
Conducted Susceptibility Test	Class Ⅲ（GB/T 17626.6 IEC 61000-4-6）
Power Frequency Magnetic Field Susceptibility Test	Class Ⅳ(GB/T 17626.8 IEC 61000-4-8)
Oscillating wave immunity	Class Ⅲ(GB/T 17626.12 IEC 61000-4-12)
Electromagnetic emission limits	Accordant(GB/T 14598.16 IEC 60255-25)
