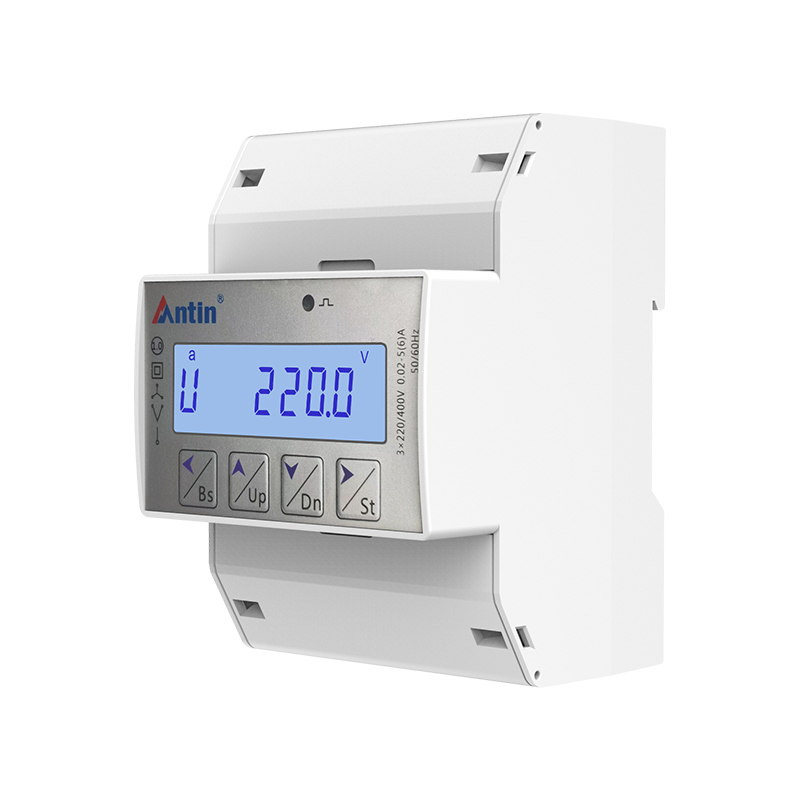

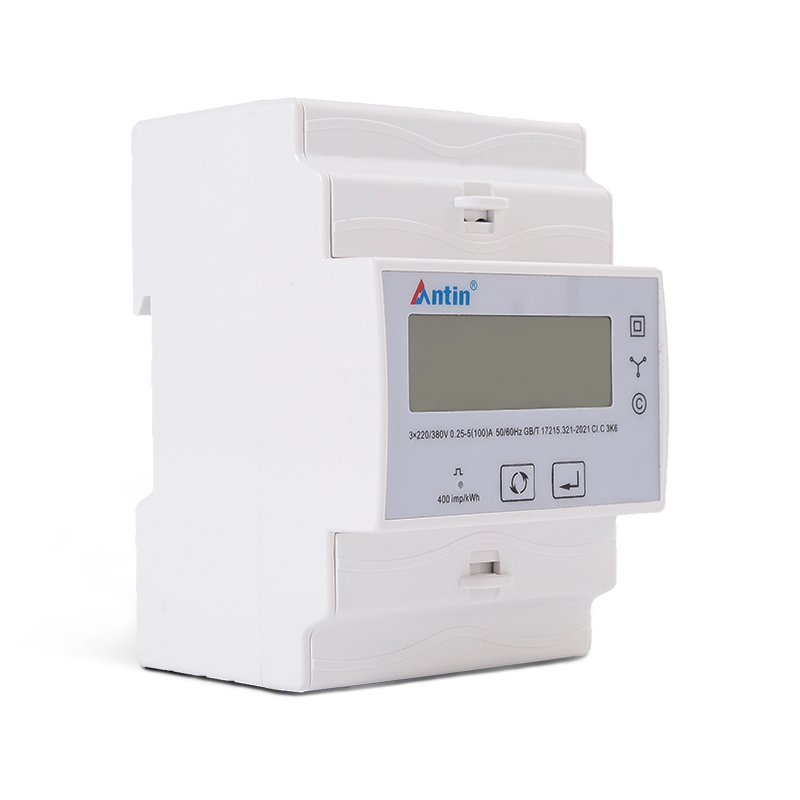

AT180G Series Three Phase Din Rail Energy Meter

MODEL:AT180G

  • AC/DC85~265V
  • SOE equipment full event logging
  • RS485(MODBUS-RTU)
  • DI/DO, Relay alarm output
  • 38400bps Communication speed
Hangzhou Antin Power Technology Co., Ltd.
  • INFORMATION
  • APPLICATION
  • PARAMETER
  • DOWNLOAD
Main Function
Voltage/Current 0.50%
Frequency 0.20%
Power / Power Factor 1%
Active power Class 0.5S
Reactive power Class 2
Humidity ≤95%RH
Altitude ≤2000m
Temperature -25℃~55℃
Working Power
Operating range AC/DC85~265V
Power consumption ≤5W

AC input
Input voltage
Rated AC 100V、220V、400V
Overload 1.2times continuous, 2 times(10s)
Power consumption <0.4VA/phase
Impedance ≥200kΩ
Input current
primary current 1-9999A
Secondary input 1A or 5A
Short-time overcurrent 20 times Max. current for 0.5s
Power consumption
Impedance ≥0.1Ω
Appearance

Dimension

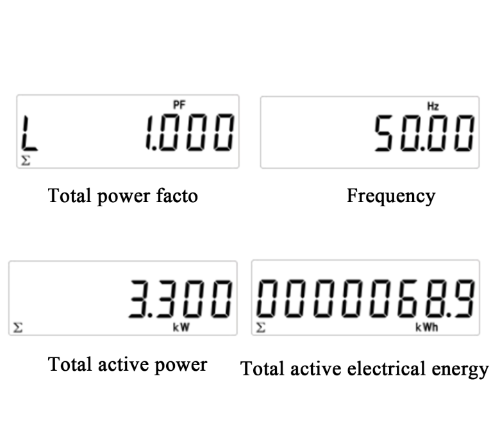

LCD Display

Wiring

Installation
