MODEL：ATB-800

ATB-800 Series Microcomputer Protection Devices

ATB-800 series Microcomputer protection Devices are suitable for protecting, measuring, and controlling interval units of all voltage levels below 110kV. With perfect protection, measurement, control, backup power auto-activation, and communication monitoring functions, it can provide a complete solution for the protection and control of substations, powerplants, high & low voltage distribution, and plant power systems, which can strongly guarantee the safe and stable operation of high and low voltage power grids and plant power systems. Together with other protection and automation equipment, it can be used to form an automation system through a communication interface. All devices can be
installed centrally in a panel or locally in high & low voltage switchgear.

PREV:ATB-600 Series Microcomputer Protection Devices

NEXT:No next article

Model
Feature
Parameters
Dimension

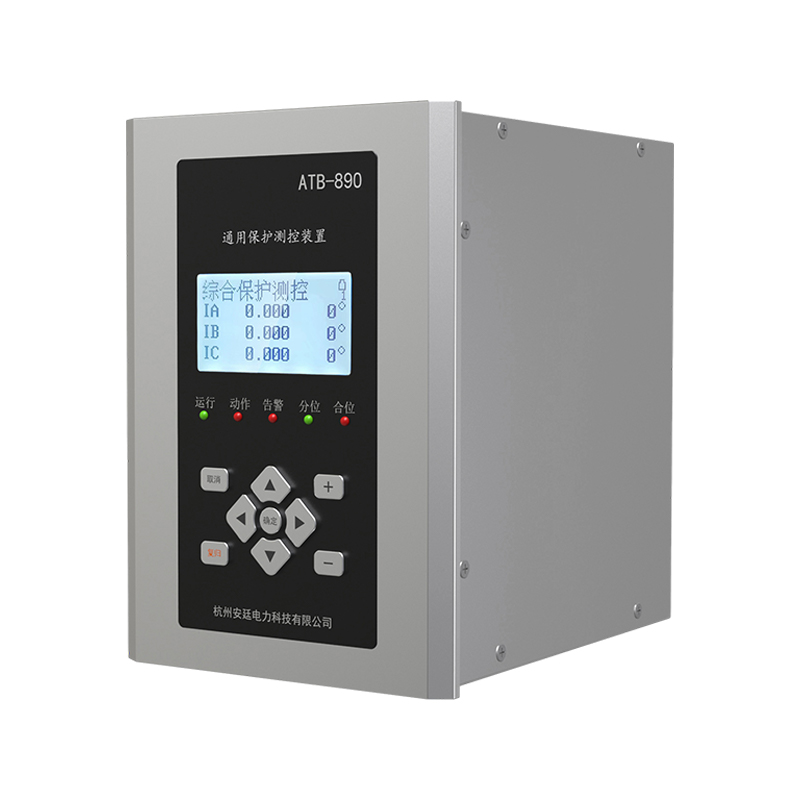

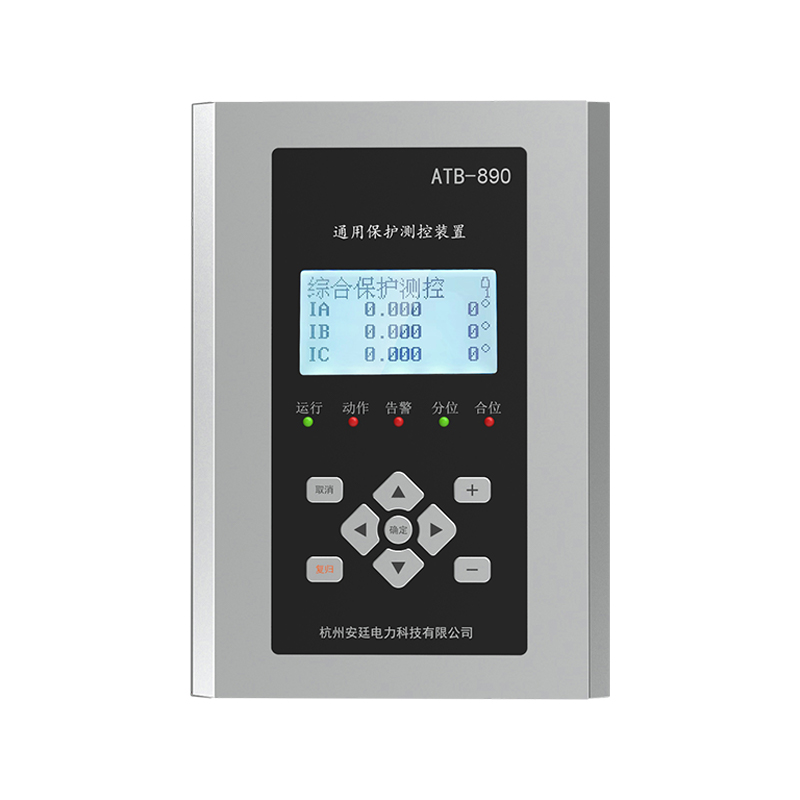

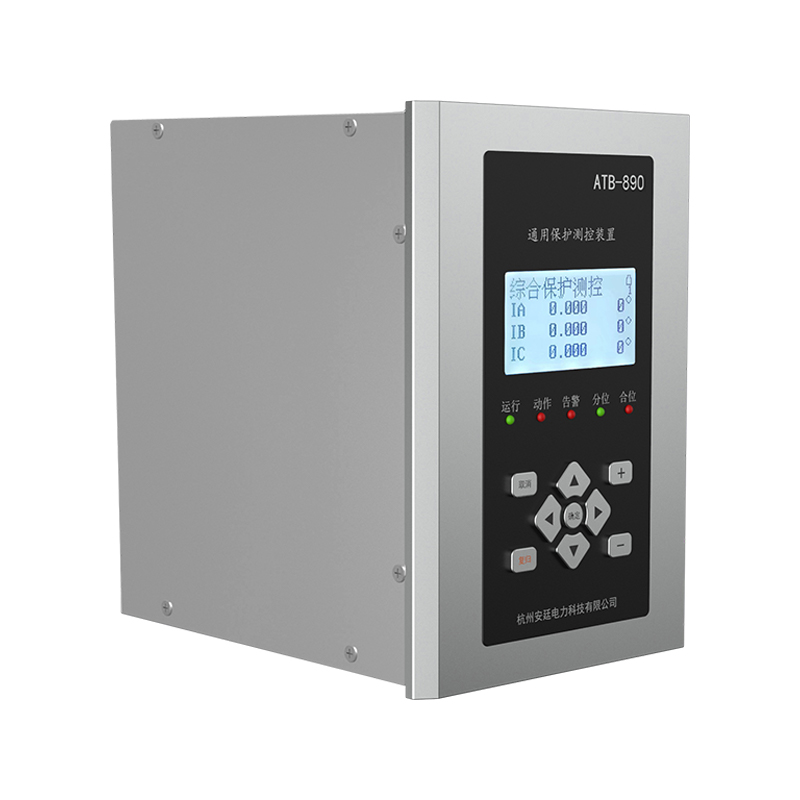

●ATB-890 general-purpose protection and control device

●ATB-865 Motor Protection and Control device

●ATB-867 Motor Differential Protection device

●ATB-871 Backup Power activation protection device

●ATB-872 PT parallel protection and control device

●ATB-873 PT protection monitoring device

●ATB-875 Busbar standby protection device

●ATB-882 Transformer differential protection device

●ATB-885 Transformer backup protection monitoring and control device

Working Power supply
Rated working voltage	AC200V、DC220V or DC100V
Rated Tech Specs
AC Current	5A or 1A
AC voltage	400V or 100V
Frequency	50Hz
Power consumption
Power supply	Under operation ≤5W, Under Protection Status ≤10W
AC current circuit	＜1VA/Phase（IN=5A）；＜0.5VA/Phase（IN=1A）
AC voltage circuit	＜0.5VA/Phase
Precise working range
Current	0.4In~20In
Voltage	0.4V~0.2Un
Frequency	0.9Fn~1.1Fn
Time	0~100s
Accuracy for Protection Section
Constant value accuracy	≤±5%
Time accuracy	＜±1% or ±35ms
Whole group action time	≤35ms
Frequency Accuracy	≤0.01Hz
Accuracy for Measurement and Control Section
AC accuracy	≤0±.2%
Active and reactive power	≤±0.5%
Input Output
Digital Input	Input type: Active Number of optoisolated inputs：8
Relay output	Rated current carrying cap acity of contacts 250Vac/220Vdc 5A Output Type：Passive (null contact)
Communication port
RS485	Modbus RTU
Working environment
Operating temperature	-25℃~55℃
Storage temperature	-40℃~70℃
Operating humidity	≤90%RH，non-condensing, no corrosive air
Storage humidity	≤95%RH，non-condensing, no corrosive air
Altitude	≤2000m
Electromagnetic compatibility Performance
Electrostatic discharge	Class Ⅳ（GB/T 17626.2 IEC 61000-4-2）
RF Field Strength Susceptibility	Class Ⅲ（GB/T 17626.3 IEC 61000-4-3）
Electrical Fast Transient /Burst Test	Class Ⅳ(GB/T 17626.4 IEC 61000-4-4）
Surge Test	Class IV(GB/T 17626.5 IEC 61000-4-5)
Conducted Susceptibility Test	Class Ⅲ（GB/T 17626.6 IEC 61000-4-6）
Power Frequency Magnetic Field Susceptibility Test	Class Ⅳ(GB/T 17626.8 IEC 61000-4-8)
Oscillating wave immunity	Class Ⅲ(GB/T 17626.12 IEC 61000-4-12)
Electromagnetic emission limits	Accordant(GB/T 14598.16 IEC 60255-25)
Electrical insulation properties
Dielectric strength	2kV Working frequency voltage, 1 min （GB/T 13729）
Insulation resistance	≥100MΩ （GB/T 13729）
Shock voltage	5kV，12/50μs （GB/T 13729）
Mechanical properties
Vibration Response/Durability	Class Ⅰ （GB/T 11287）
Shock Response/Durability	Class Ⅰ （GB/T 14537）
Crash Response	Class Ⅰ （GB/T 14537）
Overall Dimension
H×W×D	215.4mm×149mm×183.6mm
Cut-out Dimension	208mm×147mm

Model Function		ATB - 865	ATB - 867	ATB - 871	ATB - 872	ATB - 873	ATB - 875	ATB - 882	ATB - 885	ATB - 890
Protect	Three- stageovercurrent protection						■		■	■
	Phase to phasefixed time overcurrent protection	■
	Overload protection	■					■		■	■
	Overload blocking voltage regulation								■
	Overload start air cooling								■
	Three- phaseonce reclose									■
	Acceleration protection									■
	Charge protection						■		■	■
	Negative sequence overcurrent protection	■								■
	Zero-sequence overcurrent protection	■							■	■
	Over-voltage protection	■			■	■			■	■
	Low voltage protection	■			■	■			■	■
	Zero-sequence overvoltage protection	■							■	■
	Low-frequency load shedding									■
	Non-power protection	■	■					■
	Differential Quick Break	■	■					■
	Ratio differential		■					■
	Second harmonic blocking							■
	CT disconnection blocking		■					■
	Inline standby self-recovery			■			■
	Bridges withstand self- recovery			■			■
	PT disconnection alarm				■	■
	Busbar grounding				■	■
	PT voltage parallel/unparallel				■
telemetry communicate	Voltage	■							■	■
	Current	■	■					■	■	■
	Active Power	■							■	■
	Reactive power	■							■	■
	Power Factor	■							■	■
	Frequency	■							■	■
	Telemetry	8	11	11	11	11	11	11	11	8
event logging	Protection Events	■	■	■	■	■	■	■	■	■
	Alarm events	■	■	■	■	■	■	■	■	■
	Telemeter shift events	■	■	■	■	■	■	■	■	■
	Operation log events	■	■	■	■	■	■	■	■	■
	Accidental shift count statistics	■							■	■
control	Remote protection throwing/returning	■	■	■	■	■	■	■	■	■
	R emote Modification of setting value								■	■
	Local/remote switching and closing	■	■					■	■	■
Operation Box	Tripping and closing indication								■	■
	Self-hold and anti-tripping								■	■
	Adaptive trip and close current								■	■
	Control circuit disconnection alarm								■	■
comm.	RS-485 communication	■	■	■	■	■	■	■	■	■
