MODEL：AT181Y

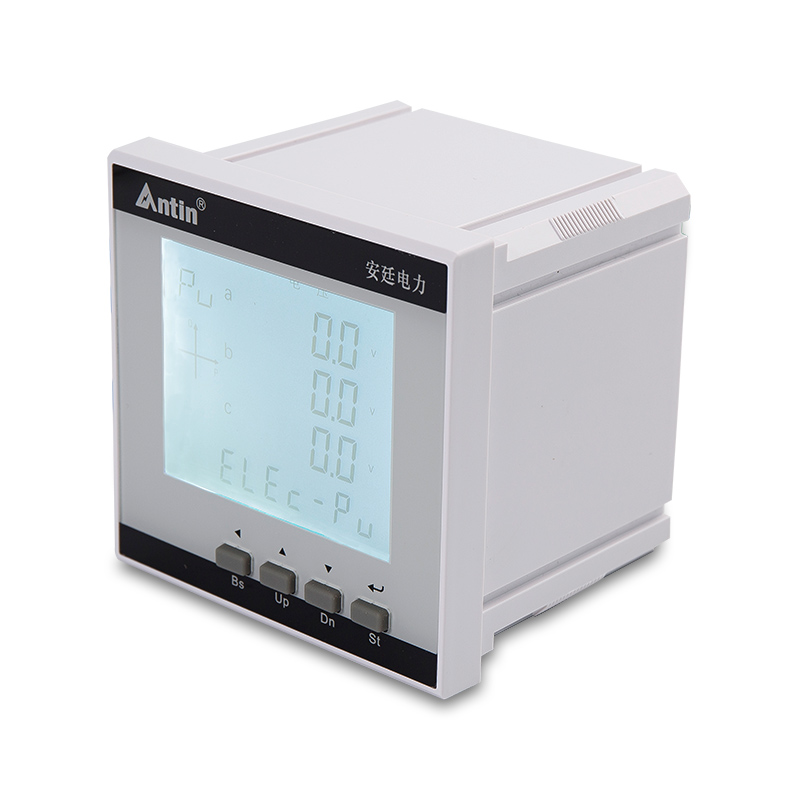

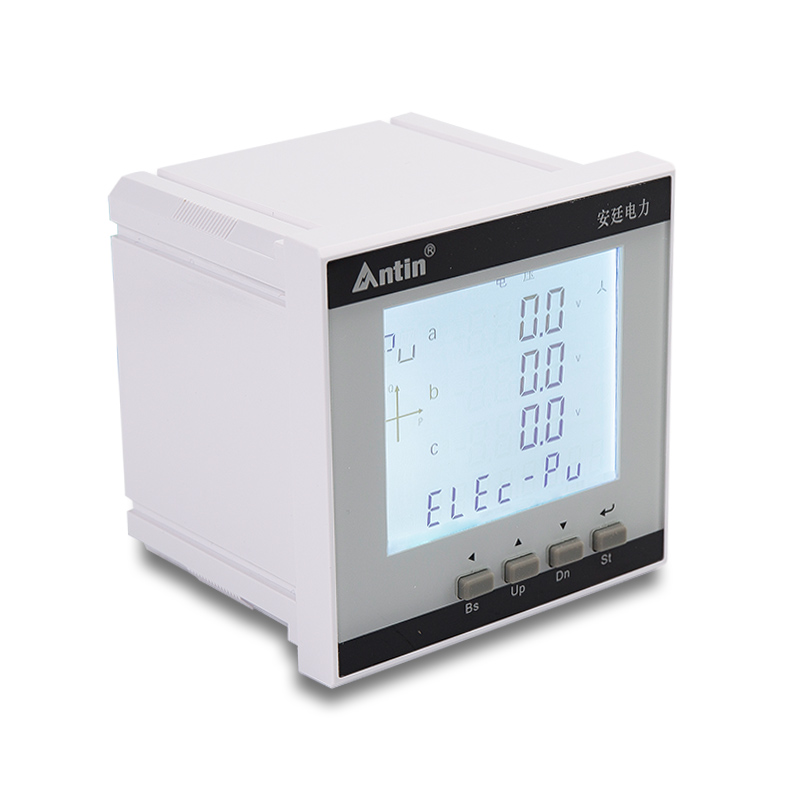

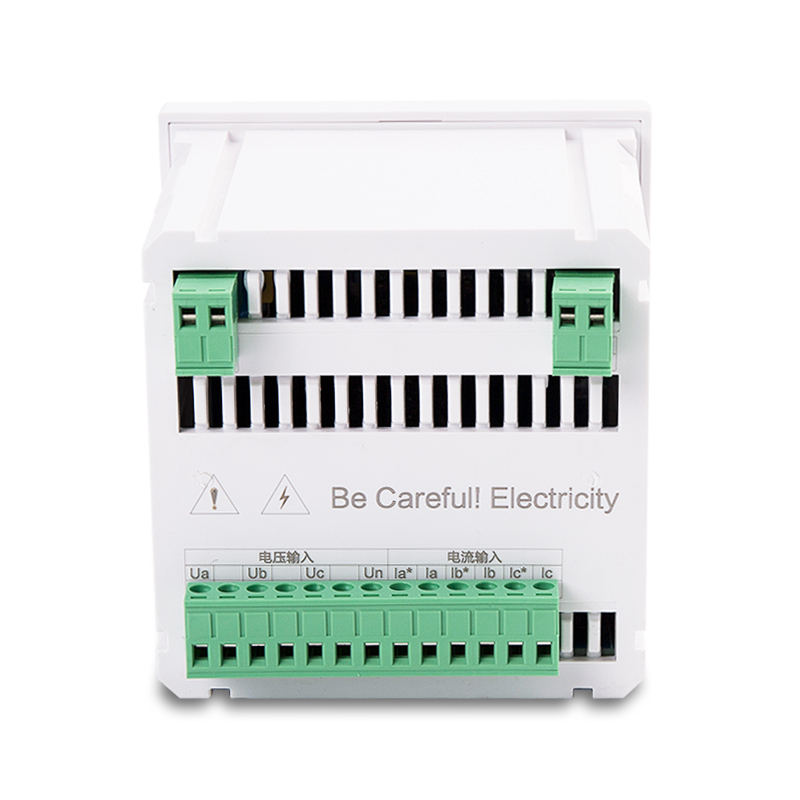

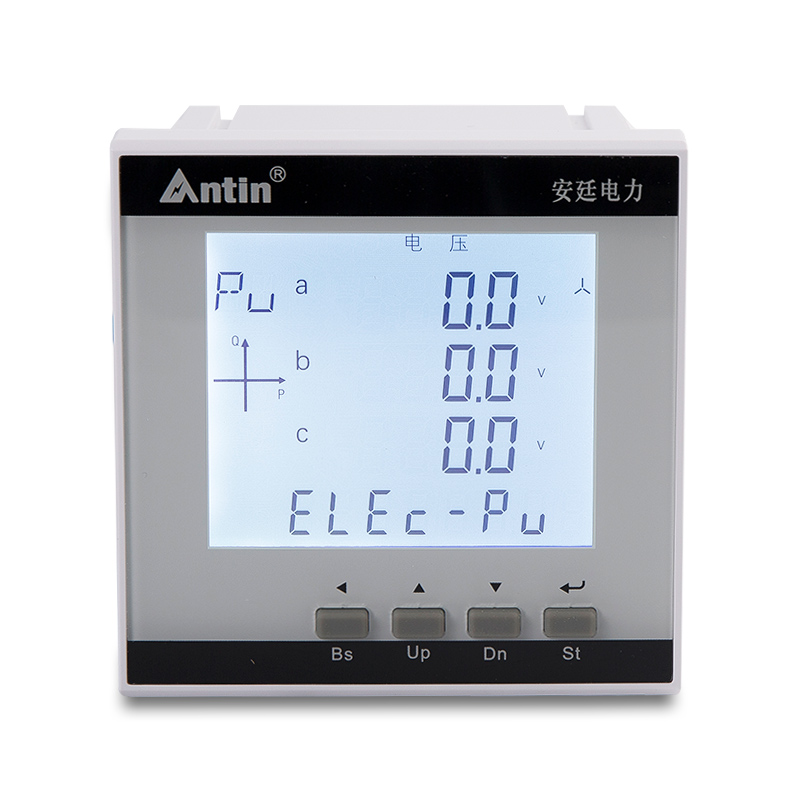

AT181Y Series Digital Multi-Function Harmonic Analyzer

AT181Y series digital Multi-function Harmonic Analyzer has powerful data acquisition and processing functions, with three-phase voltage, three-phase current, active power, reactive power, power factor, frequency, forward and reverse active/reactive energy, total harmonics of three-phase voltage and current and the rate of content of the 2nd-31st harmonic components measurement and calculation functions, which can greatly reduce system costs, facilitate on-site wiring, and improve the reliability of the system.

PREV:AT180Y Series Digital Multi-Function Harmonic Analyzer

NEXT:No next article

Model
Feature
Parameters
Dimension

●AT161Y Digital Three Phase Multi-function Harmonic Analyzer

●AT171Y Digital Three Phase Multi-function Harmonic Analyzer
●AT181Y Digital Three Phase Multi-function Harmonic Analyzer

Hangzhou Antin Power Technology Co., Ltd.

Hangzhou Antin Power Technology Co., Ltd is located in Hangzhou, China, known as the "Silicon Valley of Paradise". Establishment in 2013.Antin Power is one of the leading AT181Y Series Digital Multi-Function Harmonic Analyzer Company and AT181Y Series Digital Multi-Function Harmonic Analyzer Suppliers of electricity meters and energy measurement solutions to help worldwide customers visualize all energy usage and improve productivity and energy efficiency.

Over the years, Antin Power has developed a wide range of products including din rail energy meters, multi-function energy meters, prepaid energy meters, panel meters, etc., which could be widely used in the applications like energy management and monitoring systems, sub-billing systems, electrical SCADA system etc.

0
Founded In
0
Certificate
0year
Quality Promise
0+
Cooperate Client

Company Honor

News

Are cabinet dehumidifiers noisy?
07 Dec, 2023
Cabinet dehumidifiers can range in noise tiers relying on the particular model and brand. Some fashi...
READ MORE
Are electric submeters mandatory or optional in certain situations?
30 Nov, 2023
Electric submeters are gadgets that are set up in person gadgets or regions inside a constructing to...
READ MORE
Anting Anji two-day tour November 26-27, 2021, the company organized all employe...
26 Nov, 2021
Antin Anji two-day tour on November 26-27, 2021, the company organized all the staff to go to the gr...
READ MORE
Ma Dingzhong, Secretary Of The Party Committee And Director Of The Management Co...
14 Oct, 2021
On the morning of October 13, Ma Dingzhong, secretary of the Party Committee and director of the Man...
READ MORE
Labor Cup Tug Of War
11 Sep, 2018
In order to advocate spiritual civilization, exercise healthy body, bring together the unity of our ...
READ MORE
On April 20, 2018, The Company Organized All Employees To Go To Shengsi Island
11 Sep, 2018
It is said that there is an immortal mountain in the sea, and the mountain is in the misty world. S...
READ MORE

Get a quote to learn about our new products

Sales Tel
+86-571-87671599 +86-571-87671539
Technical Support
+86-571-87671596 +86-571-87381800
E-mail
[email protected]
FAX
+86-571-87381800
Address
4th Floor, Building C, Qinglan Science and Technology Park, Xihu District, Hangzhou City, Zhejiang Province, China

What's your name?
What's your email address?*
What's your telephone？
Your company name?
Your message*
SUBMIT

Download
Our Brochure

Click
Back To Top

Working Power
Operating range	AC/DC85~265V
Power consumption	≤5W
AC input
Input voltage Rated	AC 100V、220V、400V
Overload	1.2times continuous. 2times( 10s)
Power consumption	<0.4VA/phase
Impedance Input current	≥200kΩ
Primary current	1-9999A
Secondary input	1Aor5A
Short-time overcurrent	20 times Max. current for 0.5 s
Power consumption	<0.2VAPhase
Impedance	≥0.1Ω
Input output
Switch inputs	Dry contact input, optoisolated
Switch outputs	Relay output： any power alarm can be set. default remote control
Comm Port
RS4S5	Modbus RTU
Accuracy
Voltage/C current	0.5%
Frequency	0.2%
Power / Power Factor	1%
Active power	aass0.5S
Reactive power	Class2
Operation Environment
Operating temperature	-25℃~55℃
Storage temperature	-40℃~70℃
Operating humidity	≤90%RH，non-condensing,no corrosive air
Storage humidity	≤95%RH，non-condensing,no corrosive air
Altitude	≤2000m
Electromagnetic compatibility Performance
Electrostatic discharge	Class Ⅳ（GB/T 17626.2 IEC 61000-4-2）
RF Field Strength Susceptibility	Class Ⅲ（GB/T 17626.3 IEC 61000-4-3）
Electrical Fast Transient /Burst Test	Class Ⅳ(GB/T 17626.4 IEC 61000-4-4）
Surge Test	Class IV(GB/T 17626.5 IEC 61000-4-5)
Conducted Susceptibility Test	Class Ⅲ（GB/T 17626.6 IEC 61000-4-6）
Power Frequency Magnetic Field Susceptibility Test	Class Ⅳ(GB/T 17626.8 IEC 61000-4-8)
Oscillating wave immunity	Class Ⅲ(GB/T 17626.12 IEC 61000-4-12)
Electromagnetic emission limits	Accordant(GB/T 14598.16 IEC 60255-25)
Overall Dimension
HWD	96mm×96mm×75mm
Cut-out Dimension	92mm×92mm
